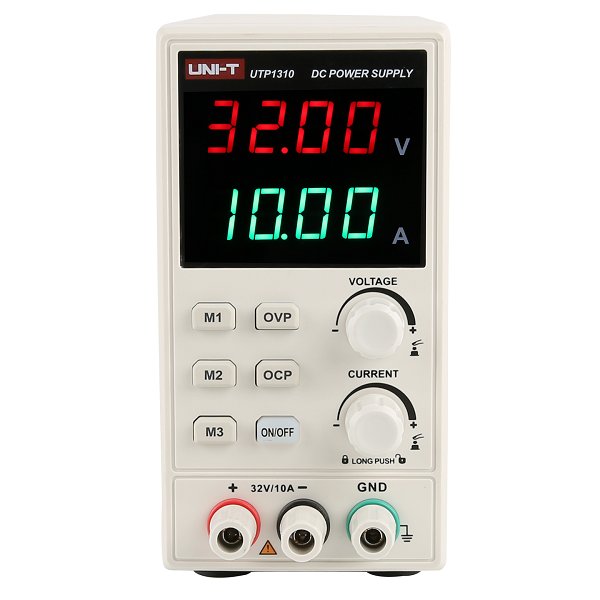

UNI-T UTP1310S DC Power Supply 32V 10A - Image 1
Click to enlarge

UNI-T UTP1310S DC Power Supply 32V 10A

UTP1300 series power supply is an economical switch-type DC regulated power supply with single output. It has a pure output, excellent performance indicators, and can meet diverse testing needs.

  • Single output
  • Output: 32V, 10A
  • Output power 320W
  • Resolution: 10mV/1mA
  • Over voltage/current protection
  • 3 groups of one-key recall of stored datas
  • Over current/voltage protection value settable
  • Independent output switch

Original price was: ₹13,500.00.Current price is: ₹9,950.00.

Add to compare
Add to wishlist
10 People watching this product now!

Payment Methods:

Description

UNI-T UTP1310S DC Power Supply 32V 10A

Output voltage 0~32V
Output current 0~10A
Output power 320W
Load regulation CV＜0.1%+5mV
CC＜0.2%+3mA
Power regulation CV＜0.01%+5mV
CC＜0.2%+3mA
Output regulate resolution CV: 10mV (typical), CC: 1mA (typical)
MTBF(e): ≥2000hrs
Programming accuracy
(25℃±5℃) Voltage ＜0.1%+1digit
Current ＜0.2%+3mA
Ripple and noise
(20Hz~20MHz) Voltage ≤10mVrms
Current ≤5mArms
Display mode LED voltage and current dual display
General Characteristics
Power Input voltage: 110V AC/220V AC, 50Hz~60Hz
Display EBTN LCD
Product color White and grey
Product size (W×H×D) 80mm x 150mm x 230mm
Product net weight 2.5kg

Used in product debugging and maintenance, quality control and testing, production automation testing, teaching experiments, etc.
