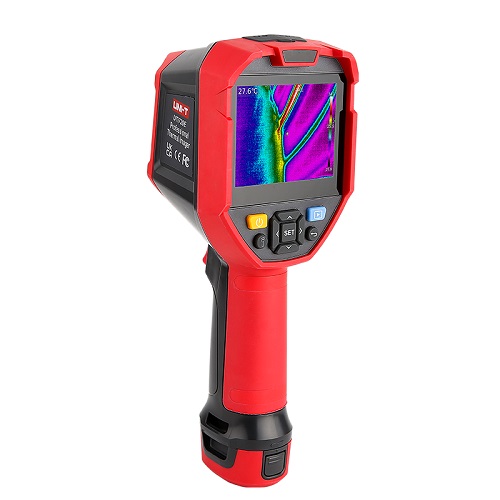

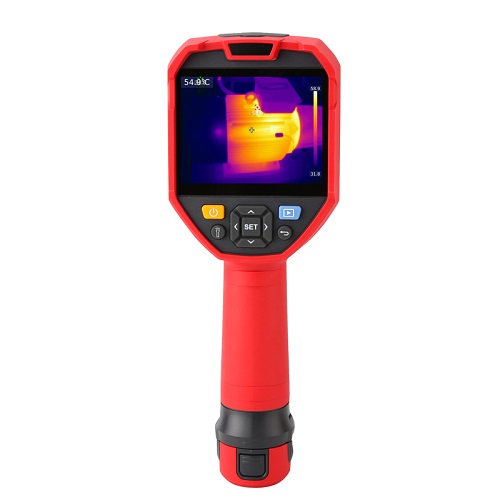

UTi720E is an advanced thermal camera with Wi-Fi capability. Its large 3.5” IPS display screen can clearly display 256×192 thermal resolution 2MP visual camera, or a blended image of both. It can measure temperature from -20℃ to 550℃. UTi720E’s 5200mAh detachable battery pack is convenient for easy and quick battery change, allowing continuously work for long periods of time.
Features :
- 3.5” IPS display screen (640×480 Pixels)
- IR resolution: 256×192
- Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On screen analyzer : 5 Points/1 Line/3 Rectangles/3 Circles
- Image capture
- Digital camera resolution: 2MP
- Digital zoom: 2x, 4x
- Image modes: Thermal,Visual image,Fusion,PIP
- Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
- Isotherm (Auto/Ratio/Below/Above/Section/Manual)
- LED flashlight
- Wi-Fi connection through Mobile App
- QR Code – photo management
- PC software: analysis and real-time image projection
- 5200mAh replaceable battery pack (Type-C rechargeable)
- 1/4”tripod mounting hole
- IP54
- 2m drop proof
IR resolution (Pixels) 256×192
Display 3.5‘’IPS (640×480)
Field of view (FOV) 56°×42.2°
Thermal sensitivity (NETD) ≤50mK
Spatial resolution (IFOV) 3.8mrad
Frame rate ≤25Hz
Spectral range 8~14µm
Focus Focus Free
Temperature measurement range -20℃~550℃
Accuracy ±2℃ or ±2% whichever is greater.
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Colour palettes 7 (White hot, Black hot, red hot, Iron bow, Rainbow HC, Rainbow, Lava)
Image modes Thermal, Visual image, Fusion, PIP
On screen analyser 5 Points/1 Line/3 Rectangles/3 Circles
Digital camera resolution 2MP
Digital zoom 2x, 4x
Hi/Lo temperature alarm Icon, LED flashlight.
Isotherm 6 (Auto/Ratio/Below/Above/Section/Manual)
Software analysis PC+APP
Wi-Fi √
