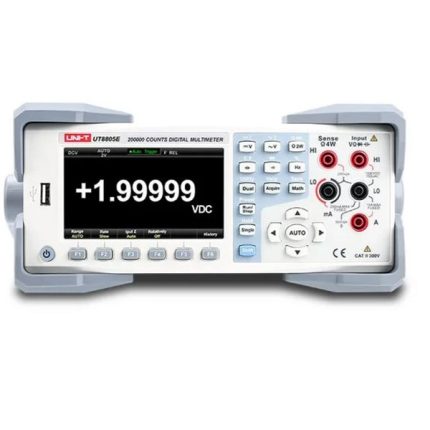

UNI-T UT8805E Benchtop Multimeter
UNI-T UT8805E Benchtop Multimeter Original price was: ₹54,500.00.Current price is: ₹48,599.00.
Back to products
UNI-T UT8803E Benchtop Multimeter with LCRQ- True Rms
UNI-T UT8803E Benchtop Multimeter with LCRQ- True Rms Original price was: ₹23,500.00.Current price is: ₹16,899.00.
-15%
UNI-T UT8804E Benchtop Multimeter- True Rms - Image 1
Click to enlarge

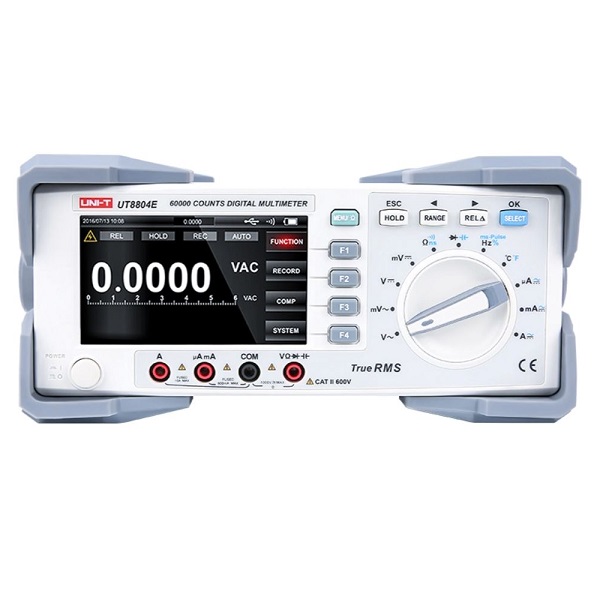

UNI-T UT8804E Benchtop Multimeter- True Rms

The UT8804E is a desktop digital multimeter with a maximum display value of 60000 with automatic or optional manual range adjustment, a color display and a true RMS measurement function. Its circuit design utilizes large-scale (LSI) analogue-to-digital (A / D) converters, a microprocessor, multifunctional measurement, and highly stable thin film resistor technology, making it a digital multimeter with outstanding performance. The meter can be used to measure AC / DC voltage, AC / DC current, resistance, conductivity, diodes, line continuity, capacitance, temperature, frequency, pulse width, etc. In addition, it also has data storage, measurement with comparison function, relative value measurement, peak value detection, trend graph capture, and the ability to record / read up to 20,000 data records. The integrated 4.3-inch color display provides multi-level, versatile and clear display of measurement results with meter reading and trend graphs.
Technical parameters :

  • maximum voltage between input terminal and COM terminal : 1000 V (DC / AC)
  • input terminal protection 10A : (CE) F1, 11A H / 1000 V, fuse Ø 10×38 mm
  • protection of input terminals μA, mA : (CE) F2, F600mA / 1000 V, fuse Ø 6×32 mm
  • 4.3 “color TFT display : full icon display; maximum value of 60000
  • refresh rate : 2-3 times / sec
  • range selection : automatic / manual
  • polarity display : automatic
  • overload display : OL

Package contents : Test cables, Crocodile clips, temperature probe type K : 2pcs, power cable (AC 220V),  application on CD, USB cable

Original price was: ₹36,000.00.Current price is: ₹30,599.00.

Add to compare
Add to wishlist
13 People watching this product now!

Payment Methods:

Description

Industrial/ Lab use professional Benchtop Multimeter

AC voltage measurement ( Range / Resolution / Accuracy ) :

60mV / 0.001mV / 45 ~ 1kHz ±(0.6%+60) // 1k ~ 10kHz ±(1.2%+60) // 10k ~ 20kHz ±(3%+60) // 20k ~ 100kHz ±(4%+60)
600mV / 0.01mV / 45 ~ 1kHz ±(0.3%+30 // 1k ~ 10kHz ±(1.2%+40) // 10k ~ 20kHz ±(3%+40 //20k ~ 100kHz ±(4%+40)
6V / 0.0001V / 45 ~ 1kHz ±(0.3%+30) // 1k ~ 10kHz ±(1.2%+40) // 10k ~ 20kHz ±(3%+40) // 20k ~ 100kHz ±(4%+40)
60V / 0.001V / 45 ~ 1kHz ±(0.3%+30) // 1k ~ 10kHz ±(1.2%+40) // 10k ~ 20kHz ±(3%+40) // 20k ~ 100kHz ±(4%+40)
600V / 0.01V / 45 ~ 1kHz ±(0.4%+30) // 1k ~ 10kHz ±(1.2%+40) // 10k ~ 20kHz ±(3%+40) // 20k ~ 100kHz for reference only
1000V / 0.1V / 45 ~ 1kHz ±(0.6%+30) // 1k ~ 5kHz ± (3%+40) // 5k ~ 10kHz ± (6%+40) // 10k ~ 100kHz for reference only

DC voltage measurement ( Range / Resolution / Accuracy ) :

60mV / 0.001mV / ±(0.025 %+20)
600mV / 0.01mV / ±(0.025 %+5)
6V / 0.001V / ±(0.025 %+5)
60V / 0.001V / ±(0.025 %+5)
600V / 0,01V / ±(0.025 %+5)
1000V / 0,1V / ±(0.003%+5)
– Input impedance: about 10MΩ
– overload protection: 1 000 V
– The REL function should be used to compensate for bias when set to 60 mV.

AC + DC voltage measurement ( Range / Resolution / Accuracy ) :

60mV / 0.001mV / 50 ~ 1kHz ±(1%+80) // 1k ~ 10kHz ±(3%+40) // 10k ~ 35kHz ±(6%+40)
600mV / 0.01mV / 50 ~ 1kHz ±(1%+80) // 1k ~ 10kHz ±(3%+40) // 10k ~ 35kHz ±(6%+40)
6V / 0.0001V / 50 ~ 1kHz ±(0.3%+30) // 1k ~ 10kHz ±(3%+40) // 10k ~ 35kHz ±(6%+40)
60V / 0.001V / 50 ~ 1kHz ±(1%+80) // 1k ~ 10kHz ±(3%+40) // 10k ~ 35kHz ±(6%+40)
600V / 0.01V / 50 ~ 1kHz ±(1%+80) // 1k ~ 10kHz for reference only // 10k ~ 35kHz for reference only
1000V / 0.1V / 50 ~ 1kHz ±(1.2%+80) // 1k ~ 10kHz for reference only // 10k ~ 35kHz for reference only

AC current measurement ( Range / Resolution / Accuracy ) :

600μA / 0.01μA / 45 ~ 1kHz ±(0.6%+40) // 1k ~ 10kHz ±(1.2%+40)
6000μA / 0.1μA / 45 ~ 1kHz ±(0.6%+20) // 1k ~ 10kHz ±(1.2%+40)
60mA / 0.001mA / 45 ~ 1kHz ±(0.6%+40) // 1k ~ 10kHz ±(1.2%+40)
600mA / 0.01mA / 45 ~ 1kHz ±(0.6%+20) // 1k ~ 10kHz ±(1.2%+40)
20A / 0.001A / 45 ~ 1kHz ±(1%+20) // 1k ~ 10kHz ±(3%+40

DC current measurement ( Range / Resolution / Accuracy ) :

600μA / 0.01μA / ±(0.08%+20)
6000μA / 0.1μA / ±(0.08%+10)
60mA / 0.001mA / ±(0.08%+20)
600mA / 0.01mA / ±(0.15%+10)
20A / 0.001A / ±(0.5%+10)

AC + DC current measurement ( Range / Resolution / Accuracy ) :

600μA / 0.01μA / 50 ~ 1kHz ±(0.8%+40) // 1k ~ 10kHz ±(2.0%+40)
6000μA / 0.1μA / 50 ~ 1kHz ±(0.8%+20) // 1k ~ 10kHz ±(2.0%+40)
60mA / 0.001mA / 50 ~ 1kHz ±(0.8%+40) // 1k ~ 10kHz ±(2.0%+40)
600mA / 0.01mA / 50 ~ 1kHz ±(0.8%+20) // 1k ~ 10kHz ±(2.0%+40)
20A / 0.001A / 45 ~ 1kHz ±(1,2%+20) // 1k ~ 10kHz ± (3%+40)

Resistance measurement ( Range / Resolution / Accuracy ) :

600Ω / 0.01Ω / v režimu REL: ±(0.05%+10)
6kΩ / 0.0001kΩ / ±(0.05%+2)
60kΩ / 0.001kΩ / ±(0.05%+2)
600kΩ / 0.01kΩ / ±(0.05%+2)
6MΩ / 0.0001MΩ / ±(0.3%+10)
60MΩ / 0.001MΩ / ±(2%+10)

Conductivity measurements ( Range / Resolution / Accuracy ) :

60nS / 0,01nS / ± (2%+10)

Capacitance measurements ( Range / Resolution / Accuracy ) :

6nF / 0.001nF / ±(3%+10)
60nF / 0.01nF / ±(2.5%+5)
600nF / 0.1nF / ±(2%+5)
6μF / 0.001μF / ±(2%+5)
60μF / 0.01μF / ±(2%+5)
600μF / 0.1μF / ±(2%+5)
6mF / 1μF / ±(5%+5)
60mF / 10μF / Not specified

Temperature measurement ( Range / Resolution / Accuracy ) :

-40°C – 40°C / 1°C / ±(2.0%+30)
40°C – 400°C / 1°C / ±(1 .0%+30)
100°C – 1000°C / 1°C / ±2.5%
-40°F – 104°F / 1°F / ±(2.5%+50)
104°F – 752°F / 1°F / ±(1 .5%+50)
752°F – 1832°F / 1°F / ±2.5%

Frequency measurement ( Range / Resolution / Accuracy ) :

60Hz / 0,001Hz / ±(0.02%+8)
600Hz / 0,01Hz / ±(0.01%+5)
6kHz / 0,0001Hz / ±(0.01%+5)
60kHz / 0,001Hz / ±(0.01%+5)
600kHz / 0,01Hz / ±(0.01%+5)
6MHz / 0,0001MHz / ±(0.01%+5)
60MHz / 0,001MHz / ±(0.01%+5)
10Hz – 30MHz : 600 mV ≤ a ≤ 30Vrm
> 30 MHz : Not specified

Duty cycle measurement( Range / Resolution / Accuracy ) :

10% ~ 90% (10Hz-2kHz) / 0.01 / ±(1.2%+30)

Pulse width measurement ( Range / Resolution / Accuracy ) :

250ms / 0.001ms ~ 0.01ms / ±(1.2%+30)
10 Hz – 200 kHz : Pulse width> 2μs

Line continuity test :

Resolution 0.01Ω
Note :
The control voltage is about 3V
Short circuit warning: If the resistance is less than 10Ω, the buzzer will sound permanently.
If the resistance is > 50Ω, the buzzer will be silent.
Open circuit warning : If the resistance is> 50Ω, the buzzer sounds permanently.
If the resistance is <10Ω, the buzzer will be silent.

Diode test :

Resolution 0.0001V
Note :
The control voltage is about 3V and the measurable forward voltage drop PN
transition is about ≤3V. When the buzzer is activated, a short beep indicates normal
PN junction connection, continuous whistle indicates a PN junction short circuit
Typical silicon PN junction voltage is about 0.5 to 0.8 V

working temperature : 0 ° C – 40 ° C (32 ° F – 104 ° F)
storage temperature : -10 ° C – 50 ° C (14 ° F – 122 ° F)
relative humidity : ≤75% at 0 ° C – 30 ° C, ≤50% at 30 ° C – 40 ° C
temperature coefficient : 0,1x (specified accuracy) / ° C (<18 ° C or ≥28 ° C)
electromagnetic compatibility :
RF = 1V / m, total accuracy = specified accuracy + 5% of range
RF> 1V / m, no specified calculation
power supply : AC 100V / 120V / 220V / 240V, 47 – 63Hz
protective fuse used for supply voltage 220 to 240V / AC : T125mA / 250V
size : 320mm x 265mm x 110mm
safety standard : IEC 61010: CAT II 600V

Warranty: 1 Year
