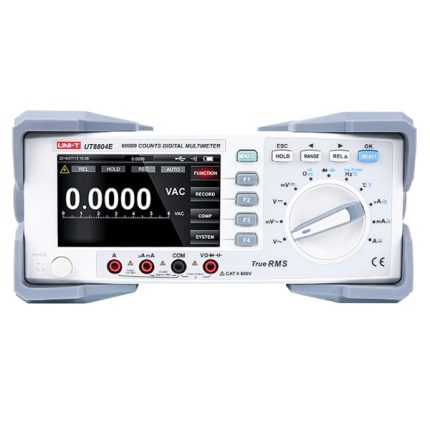

UNI-T UT8804E Benchtop Multimeter- True Rms
UNI-T UT8804E Benchtop Multimeter- True Rms Original price was: ₹36,000.00.Current price is: ₹30,599.00.
Back to products
UNI-T UT181A True RMS Datalogging Multimeter
UNI-T UT181A True RMS Datalogging Multimeter Original price was: ₹42,000.00.Current price is: ₹32,799.00.
-28%
UNI-T UT8803E Benchtop Multimeter with LCRQ- True Rms - Image 1
UNI-T UT8803E Benchtop Multimeter with LCRQ- True Rms - Image 2
Click to enlarge

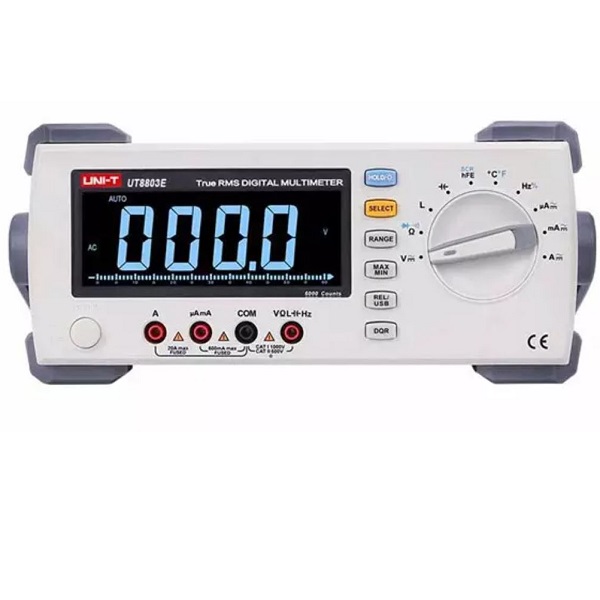

UNI-T UT8803E Benchtop Multimeter with LCRQ- True Rms
UNI-T UT8803E Benchtop Multimeter with LCRQ- True Rms - Image 2

UNI-T UT8803E Benchtop Multimeter with LCRQ- True Rms

The UT8803E from UNI-T is a fully-featured true-RMS 6000 counts benchtop multimeter that in addition to temperature and frequency is also capable of measuring capacitance and inductance including the Q-factor. This multimeter comes with free PC software with which you can record data and plot it into a graph.

Features:

  • Automatic scale, True rms reading
  • Diode / transistor
  • Measuring thyristor SCR
  • Inductance measurement
  • USB interface
  • Data retention, Max / Min
  • Continuity buzzer

The UNI-T UT8803E multimeter comes with the following accessories::

  • UT-S03A socket
  • Test Lead
  • Alligator clip
  • USB interface cable
  • Power Cable

ToolWorld is Authorized UNI-T Distributor

Includes calibration/conformity report

Original price was: ₹23,500.00.Current price is: ₹16,899.00.

Add to compare
Add to wishlist
10 People watching this product now!

Payment Methods:

Description

Industrial use Benchtop Multimeter

DC Voltage 0.1 mV – 1000 V    ±(0.5% + 2)
AC Voltage  0.1 mV – 750 V    ±(0.6% + 5)
DC Current 0.1 μA – 10A    ±(0.8% + 3)
AC Current 0.1 μA – 10A    ±(1.0% + 5)
Resistance 0.1 Ω – 60 MΩ    ±(0.8% + 5)
Temperature  -40 °C – 1000 °C    ±(2% + 5)
Capacitance 0.001 nF – 6 mF    ±(2.5% + 5)
Inductance 0.1μH – 100 H    ±(2.5% + 5)
Frequency  0.1 Hz – 20 MHz    ±(0.1% + 10)
True-RMS Yes
Extra functions  duty cycle, continuity test, diode test, hFE, thyristor measurement
Power AC 100-240V 50Hz
Display 6000 counts, 4.5″ LCD
Refresh rate  3 Hz
Connectivity   USB interface
Safety  CAT.II 600V
Weight 3100 g
Dimensions  320 x 265 x 110 mm
