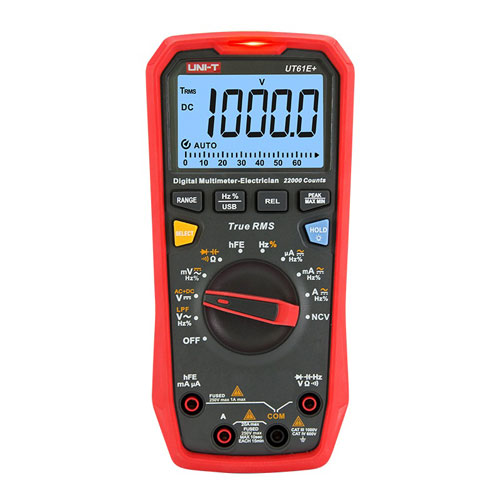

UT61E+ series are reliable true RMS digital multimeters with display counts 22,000, It can measure up to 1000V AC/DC.  Equipped with audible and visible alarm, this series can provide warning especially when measuring high voltage/current.
– Safety ratings CAT III 1000V/CAT IV 600V
– AC voltage (V) 1000V ±(0.8%＋10)
– DC voltage (V) 1000V ±(0.05%＋5)
– AC current (A) 20A ±(0.8%＋10)
– DC current (A) 20A ±(0.5%＋10)
– Resistance (Ω) 220MΩ ±(0.5%＋10)
– Capacitance (F) 220mF ±(3%＋5)
– Frequency (Hz) 220MHz ±(0.01%＋5)
– Duty cycle (%) 0.1%~99.9% ±(2%＋5)
– Display count 　 22000
– Bandwidth (Hz) 　 40~10kHz
– LPF ACV 　 √
– ACV+DCV 　 √
– Transistor hFE 　 √
– Peak Hold 　 √
– Analog bar 　 46
– Power 1.5V battery (R03) x 4
– Product net weight 350g
– Product size 190mm x 90mm x 50mm
– Optional accessories Bluetooth/APP
Warranty: As Per UNI-T Policy- 1 Year
