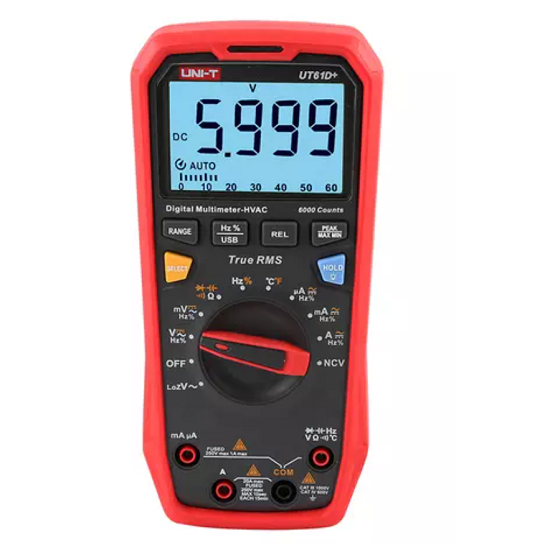

UT61+ series are reliable true RMS digital multimeters with display counts 6000. It can measure up to 1000V AC/DC.
Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
| Specifications | Range | |
| AC voltage (V) | 1000V | ±(1%＋3) |
| DC voltage (V) | 1000V | ±(0.5%＋3) |
| AC current (A) | 20A | ±(1.2%＋5) |
| DC current (A) | 20A | ±(1%＋2) |
| Resistance (Ω) | 60MΩ | ±(1%＋2) |
| Capacitance (F) | 60mF | ±(3%＋5) |
| Frequency (Hz) | 10MHz | ±(0.1%＋4) |
| Duty cycle (%) | 0.1%~99.9% | ±(2%＋5) |
| Temperature (℃/℉) |  -40℃~1000℃ | ±(1%＋3) |
|  -40℉~1832℉ | ±(1%＋6) | |
| Display count | 6000 | |
| Bandwidth (Hz) | 40Hz~1kHz | |
| LoZ ACV | √ | |
| Peak Hold | √ | |
| Analog bar | 31 | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 4 | |
| Product net weight | 350g | |
| Product size | 190mm x 90mm x 50mm | |
| Standard accessories | Battery, gold plated test leads, USB cable, temperature probe (UT61D+), | |
Warranty: 1 Year
