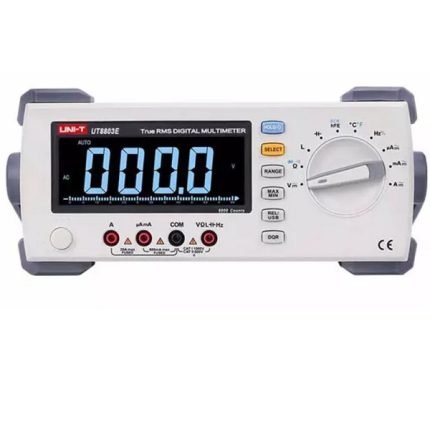

UNI-T UT8803E Benchtop Multimeter with LCRQ- True Rms
UNI-T UT8803E Benchtop Multimeter with LCRQ- True Rms Original price was: ₹23,500.00.Current price is: ₹16,899.00.
Back to products
Mastech MS8265 Digital Multimeter
Mastech MS8265 Digital Multimeter Original price was: ₹5,999.00.Current price is: ₹4,580.00.
-22%
UNI-T UT181A True RMS Datalogging Multimeter - Image 1
UNI-T UT181A True RMS Datalogging Multimeter - Image 2
Click to enlarge
UNI-T UT181A True RMS Datalogging Multimeter
UNI-T UT181A True RMS Datalogging Multimeter - Image 2

UNI-T UT181A True RMS Datalogging Multimeter

Industrial use datalogging multimeter

UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the datalogging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long term monitoring.

  • Trend capture
  • Data logging: 20000
  • Data comparison
  • 3.5-inch 64k color TFT LCD
  • Dual temperature measurement
  • Low pass filter
  • 2200mAh Li-ion battery
  • Real time and date
  • Peak hold
  • Bluetooth/APP w Optional Accessory
  • USB interface cable /PC software CD
  • IP65

Original price was: ₹42,000.00.Current price is: ₹32,799.00.

Add to compare
Add to wishlist
13 People watching this product now!

Payment Methods:

Description



Specifications Range UT181A
DC voltage (V) 1000V ±(0.025%+5)
AC voltage (V) 1000V ±(0.3%+30)
DC current (A) 10A ±(0.08%+10)
AC current (A) 10A ±(0.6%+20)
Resistance (Ω) 60MΩ ±(0.05%+2)
Admittance (nS) 60nS ±(2%+10)
Capacitance (F) 60mF ±(2%+5)
Frequency (Hz) 10Hz~60MHz ±(0.01%+5)
Temperature (°C)  -40°C~1000°C ±(1%+30)
Temperature (°F)  -40°F~1832°F ±(1.5%+50)
Features
Display count 60000
Auto/Manual range √
Bandwidth (Hz) 100kHz √
AC+DC/Continuity buzzer √
Low pass filter 1kHz √
dBV/dBm √
Diode Around 3V √
Duty cycle 10%~90% √
Dual temperature measurement T1, T2, T1-T2, T2-T1 √
Data hold/Peak hold √
Relative mode √
Data logging 20000 √
Trend capture √
MAX/MIN/AVG √
Data time display/Data comparison √
Backlight adjustment √
Analog bar graph/USB interface √
Mis-plug alarm √
Battery indication/Auto power off √
Rechargeable battery √
Input protection √
Input impedance for DCV ≥10MΩ √
General Characteristics
Power Li-ion battery: 7.4V 2200mAh
Display 3.5-inch 64K color TFT LCD (320 x 240)
Product color Red and grey
Product net weight 638.6g
Product size 225mm x 103mm x 59mm

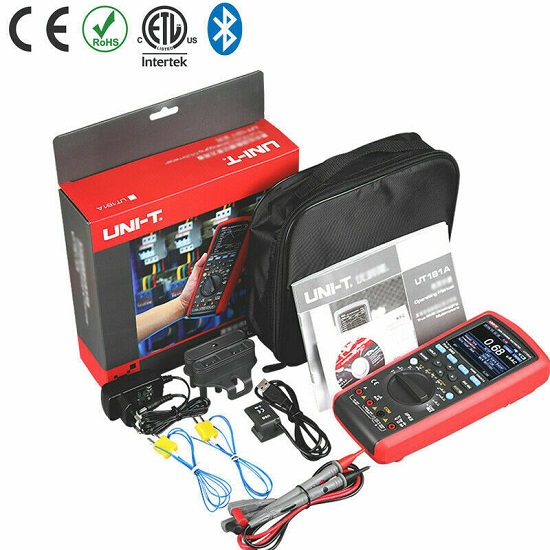

Standard accessories Battery, test leads, temperature adaptor socket,
point contact temperature probes, power adaptor socket, power adaptor, PC software CD, USB interface cable

Warranty: 1 Year
