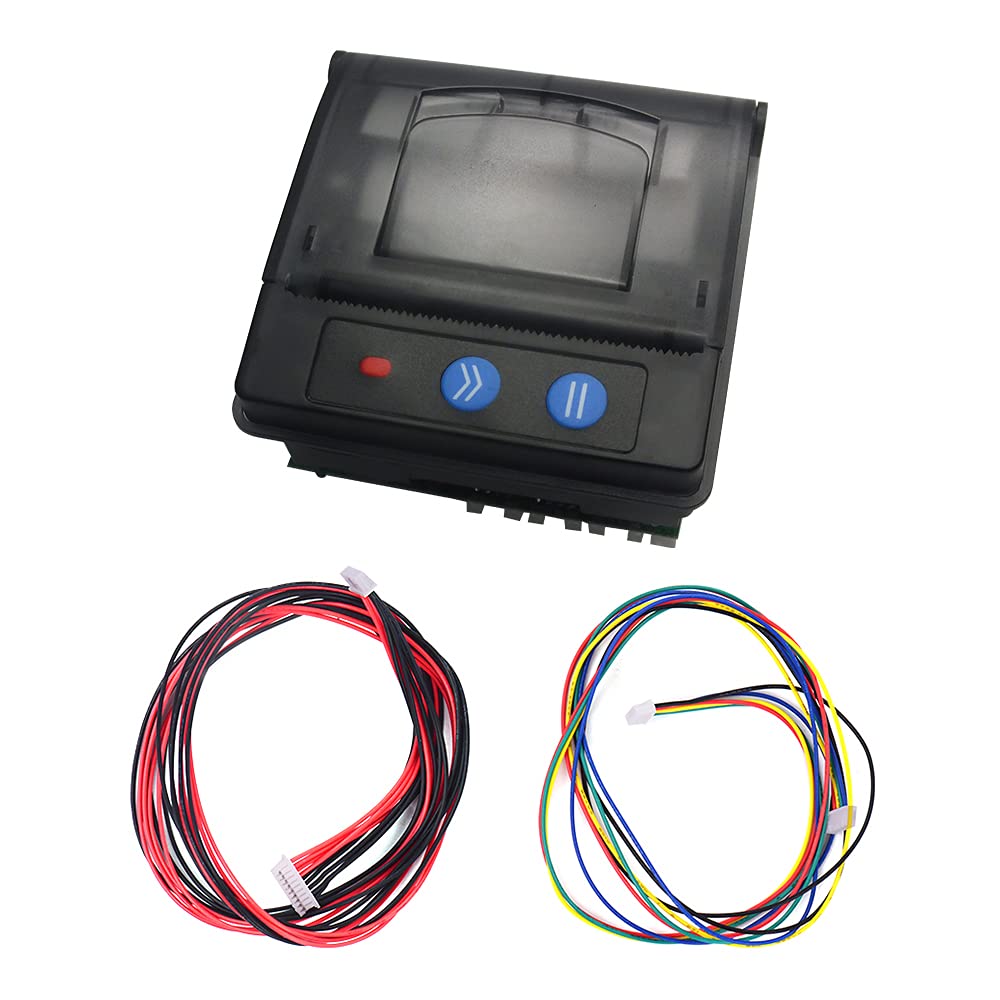

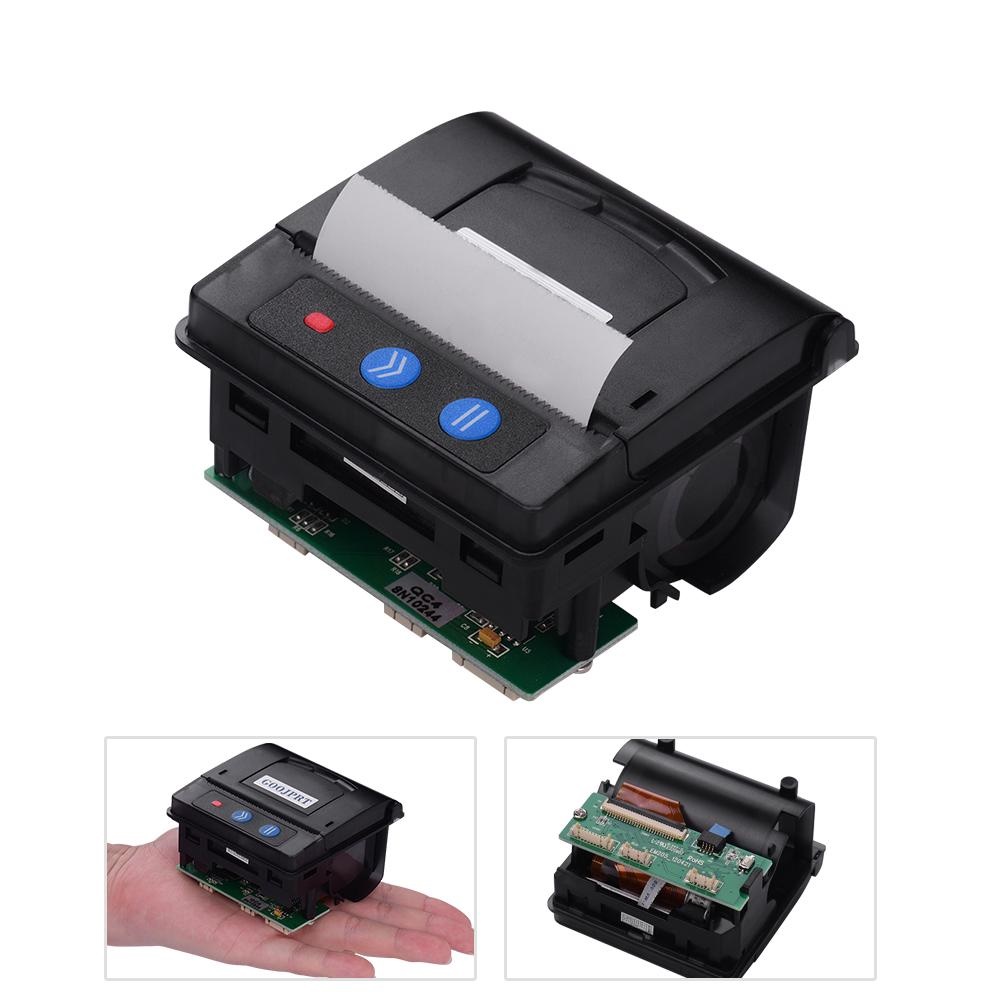

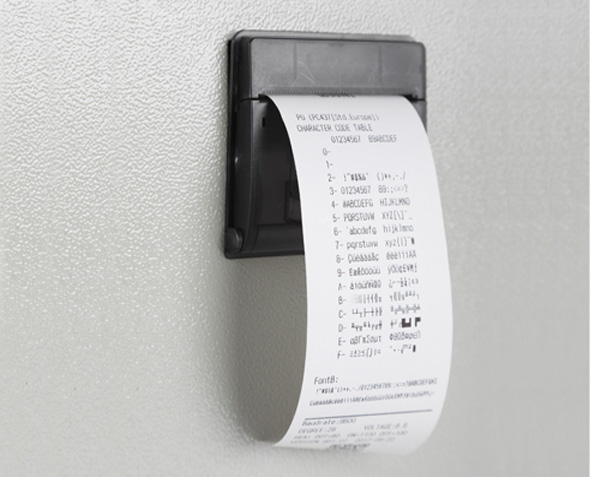

Panel Mount Printer loaded from the front and is well suited for manned applications where trained staff use a device or instrument. It is regularly used in building control panels, diagnostic equipment, medical devices, measuring instruments and much more. features an extremely cost effective mechanism – control card combination which makes suitable for budgetary applications. It features a RS232/TTL data input with a mechanism life of 50 km.
- Printing Head Life : 50Km
- Printing Speed : 50mm/sec
- Input Power : DC 5-9V

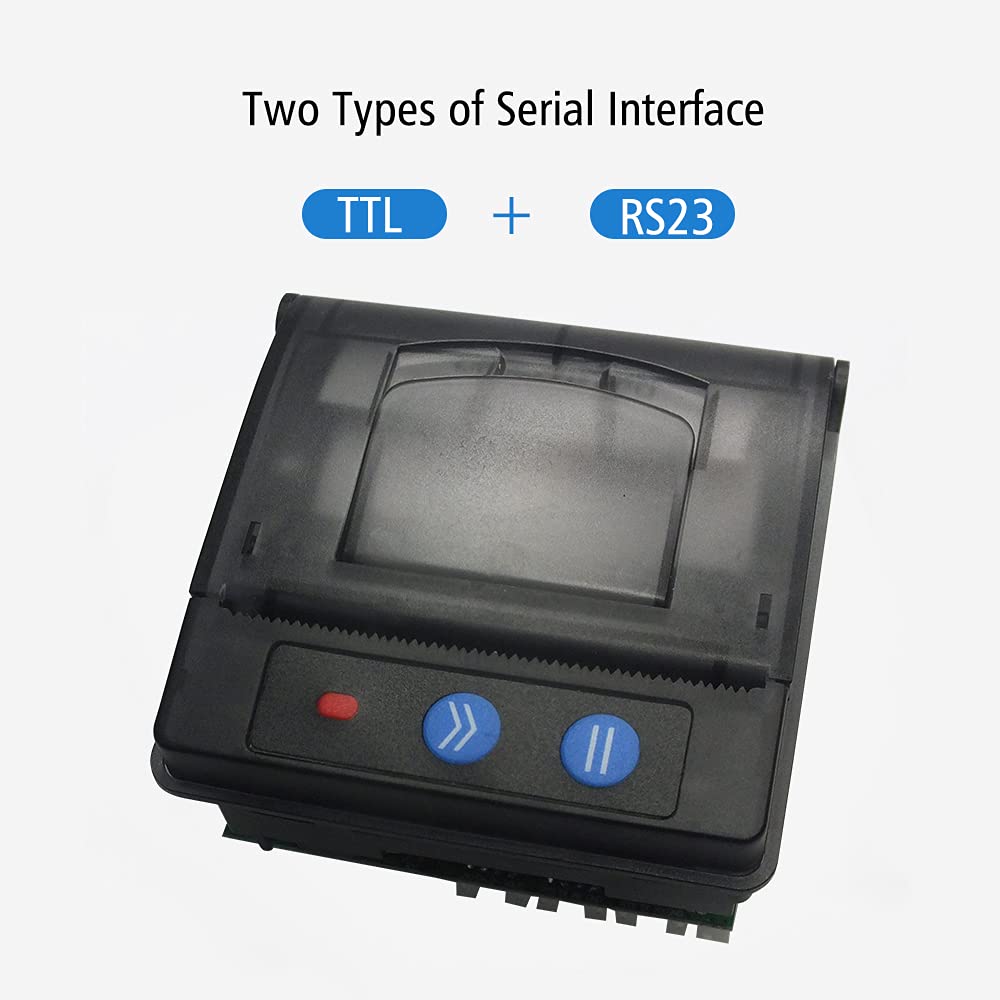

- Interface : Serial ( RS232 , TTL )
- Resolution Ratio : 8 dots/mm
PRINTING SPECIFICATIONS:-
| Print method | Thermal direct line printing |
| Paper loading method | Easy paper loading |
| Paper width | 57 mm |
| Print width | 48 mm |
| Print speed | 50 mm/sec |
| Resolution ratio | 8 dots/mm (384 dots/line) |
| Life of printing head | 50 km |
| Printing speed | 50 mm/sec |
| Max. printing speed | 80 mm/sec |
| Character size | 9 x 17 • 12 x 24 |
| Chinese character fonts | GB18030 |
| Chinese character size | 12 x 24 dots • 24 x 24 dots |

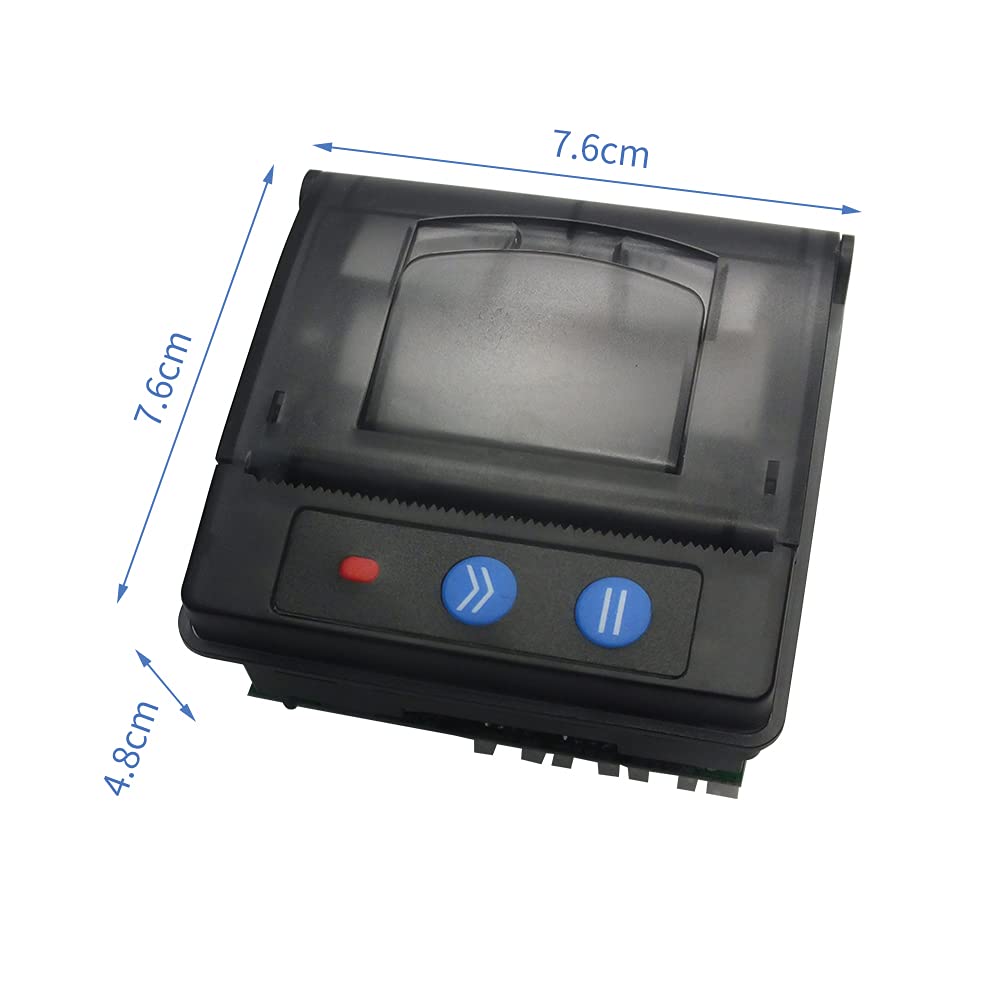

| Outline dimension | 76.8 x 77.4 x 47.6 (WxDxH mm) |
| Installation | 72.8 x 73.4 (WxD mm) |
| Embedded depth | 34.65 mm |
| Paper roll specification | Width : 58 mm, max. diameter : 40 mm |
| Interface | Serial (RS232C,TTL) / USB |
| Input power | DC5-9V • 12V |
| Operating temperature | 0°C~55°C |
| Storage temperature | 25°C~70°C |
| Operating humidity | 10°C~80°C |
| Storage humidity | 10°C~90°C |
