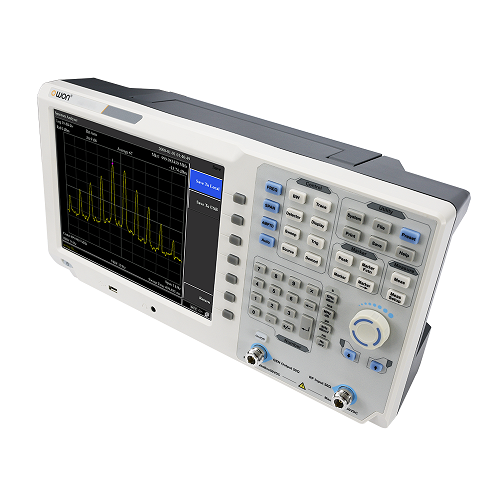

| Model | XSA1075(TG) | |||
| Frequency | ||||
| Range | 9kHz-7.5 GHz | |||
| Resolution | 1Hz | |||
| Frequency span | ||||
| Range | 0 Hz，100 Hz to maximum frequency of device | |||
| Accuracy | ± span /（swept points -1） | |||
| Internal reference | ||||
| Reference frequency | 10.000000 MHz | |||
| Reference frequency accuracy | ±[（days from last calibrate × freq aging rate）+ temperature stability + initial accuracy ] | |||
| Temperature stability | <1ppm（15℃ to 35℃） | |||
| Aging rate | <1ppm/year | |||
| Readout | ||||
| Marker frequency resolution | span/（the number of sweep points -1） | |||
| Uncertainty | ±（freq indication × freq reference uncertainty +1%× span +10%× resolution bandwidth + Marker Frequency Resolution） | |||
| Frequency counter | ||||
| Resolution | 1 Hz，10 Hz，100 Hz，1 kHz | |||
| Accuracy | ±（marker freq × freq reference uncertainty + counter resolution） | |||
| Bandwidth | ||||
| Resolution bandwidth (-3 dB) | 10Hz to 500kHz（in 1 to 10 sequence）， 1MHz，3MHz | |||
| Resolution filter shape factor | <5：1 nominal（Digital implement, similar to Gauss Pattern） | |||
| Accuracy | <5% nominal | |||
| Video bandwidth (-3 dB) | 10Hz to 3MHz | |||
