OWON SDS1102 100MHz 2 Channel Digital Storage Oscilloscope, with up to 500MS/s real-time sample rates, maximum 50MHz bandwidth.
The OWON SDS1102 offers a 7-inch color LCD screen with 800×600 resolution. The SDS1052 has a ultra-thin body at only 70mm deep for portability, and it offers a 10K record length per channel of memory.

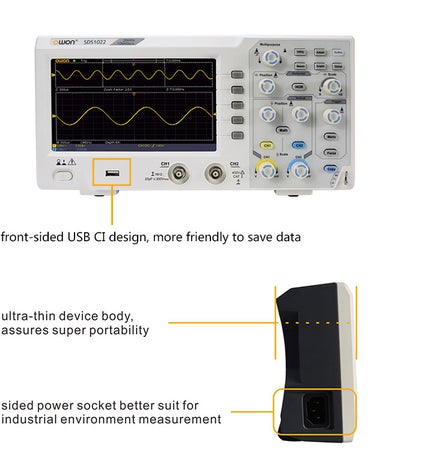

Compact design

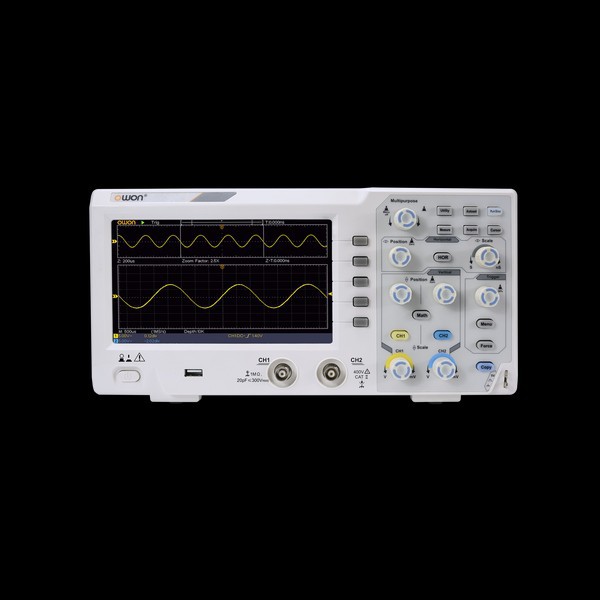

OWON SDS1102 Oscilloscope
- Bandwidth : 100MHz
- 2-Channel
- Sample rate : 100MS/s -1GS/s
- Ultra-thin body
- 7 inch high resolution LCD
- SCPI, and LabVIEW supported

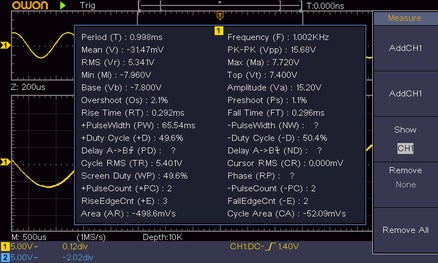

Snapshot
One click, all measurement value comes from 30 auto-measurement options.
| Model | SDS1102 |
|---|---|
| Bandwidth | 100MHz |
| Sample Rate | 100MS/s |
| Horizontal Scale (s/div) | 5ns/div – 1000s/div, step by 1 – 2 – 5 |
| Channel | 2 |
| Display | 7″ color LCD, 800 x 480 pixels |
| Input Coupling | DC, AC , and GND |
| Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) |
| Vertical Sensitivity | 5mV/div – 5V/div (at input) |
| Trigger Type | Edge, Video |
| Trigger Mode | Auto, Normal, and Single |
| Waveform Math | ＋, －, x, ÷, invert, FFT |
| Fuse | 2A, T class, 250V |
| Dimension (W x H x D) | 301 x 152 x 70 mm |
| Device Weight | 1.10 kg |
Accessories included :
1 x SDS1102
1 x Mains power cord
1 x CD Rom
1 x Quickstart Guide
1 xUSB Cable
2 x Oscilloscope probe
1 x Probe Adjust
