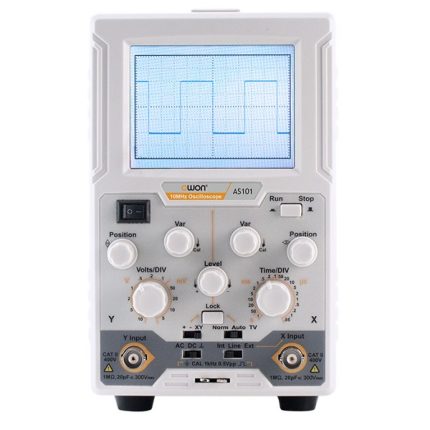

OWON AS101/MTQ 1016B Analogue Oscilloscope- 10 MHz 1 Channel
OWON AS101/MTQ 1016B Analogue Oscilloscope- 10 MHz 1 Channel Original price was: ₹13,789.00.Current price is: ₹9,650.00.
Back to products

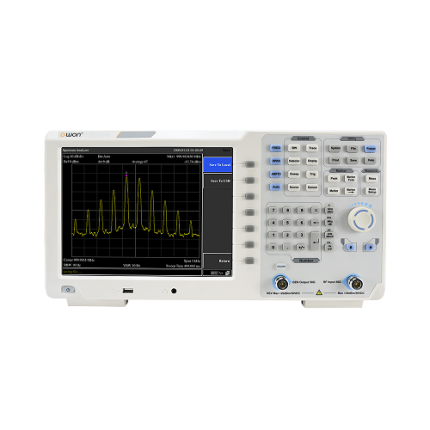

OWON XSA1075TG Spectrum Analyzer
OWON XSA1075TG Spectrum Analyzer Original price was: ₹650,000.00.Current price is: ₹549,500.00.
-15%
OWON SDS-8202V Deep Memory Digital Storage Oscilloscope 200 MHz, 2 GSa/s - Image 1
Click to enlarge

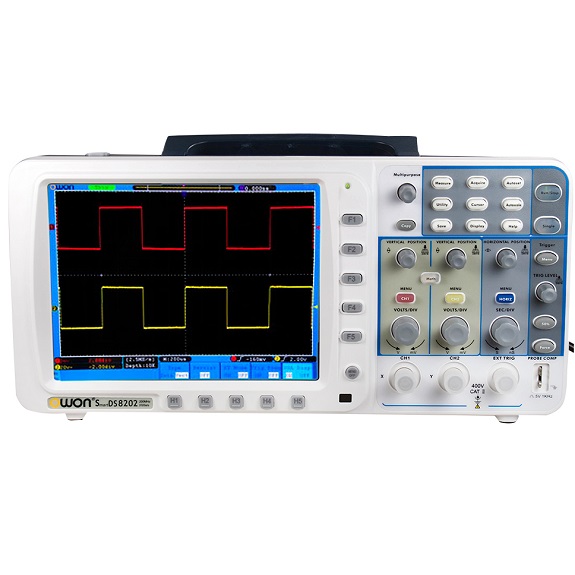

OWON SDS-8202V Deep Memory Digital Storage Oscilloscope 200 MHz, 2 GSa/s

The colorful 8″ (20.3 cm) TFT LCD panel with the resolution of 800 × 600 allows an excellent readability of the wave, especially in regards to high data volume or many waves covered reciprocally.

The SDS8202 offers a bandwidth of 200 MHz, a sample rate of 2 GSa/s in dual channel and VGA Interface

Delivery including 2 probes, a USB cable, PC software, a power adapter and a user manual.

  • Bandwidth: 200 MHz,
  • Channels: 2 +1 (External)
  • Record Length: 10M
  • Sample Rate: 2GS/S
  • Display: 8”color LCD, 800 x 600 pixels, VGA Port
  • Delivery including 2 probes, USB cable, pc software, power cable and manual.

Original price was: ₹68,000.00.Current price is: ₹57,500.00.

Add to compare
Add to wishlist
16 People watching this product now!

Payment Methods:

Description

Channels 2
Real-time sample rate 2 GSa/s real time
Bandwidth 200 MHz
Display 8″ TFT LCD with 65535 colors
Resolution 800 × 600 Pixel
Interfaces
USB PC Connection
USB Host for USB-Sticks
VGA Interface
LAN Port
Supported operation systems Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit)
Cooling Method Fan cooling
Menu Languages English, German, Spanish, Russian, Polish, Chinese, Korean

Signal SDS8202V
Max. Input voltage 400 V (peak)
Real-time sample rate 10 Sa/s to 2 GSa/s real time
Time base
1 ns/Div. to 5 s/Div.
(Steps 1 – 2 – 5)
Memory 10 Mpts per channel

Warranty: 1 Year
