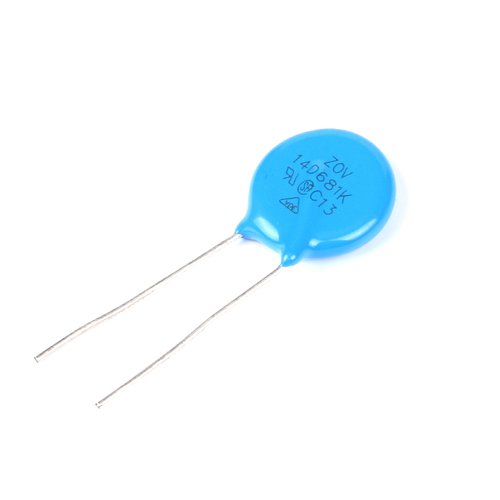

MOV-681K/14D (Metal Oxide Varistor) 5pcs

The MOV-14DxxxK Series of 14mm radial leaded varistor devices protects against overvoltage transients such as lightning, power contact and power induction. The metal oxide varistors give a choice of varistor voltages from 18 V to 1800 V and Vrms from 11 V to 1000 V. The devices have a high current handling, high energy absorption capability and fast response times to protect against transient faults up to rated limits. Circuit ProtectionSystemPage:1Specifications are subject to change without notice. Metal Oxide Varistors – 14D SeriesFeatures1. Wide (V1mA) range from 8V to 1800V.2. Fast responding to transient over-voltage.3. Large absorbing transient energy capability.4. Low clamping ratio and no following-on current. No Radioactive Material Storage Temperature: -55 ºC to +125 ºCOperating Temperature: -55 ºC to +85ºCBody: Nickel PlatedLeads: Surface-mount, Axial Devices: Tin PlatedDevices with No Leads: Nickel Plated Varistor VoltageThe voltages between two terminals with the specified measuring current 1mA. DC applied is call Vb. To meet the specified value Maximum AllowableVoltageThe recommended maximum sine wave voltage (RMS) or the maximum DC can be applied continuously. Rated WattagetThe maximum average power that can be applied within the specified ambient temperature. IEnergy The maximum energy within the varistor voltage change of ±10% when one impulse of10/1000 sec or 2 msec is applied. Withstanding SurgeCurrentThe maximum current within the varistor voltage change of ±10% with the standard impulse current (8/20 sec.) applied one time.
