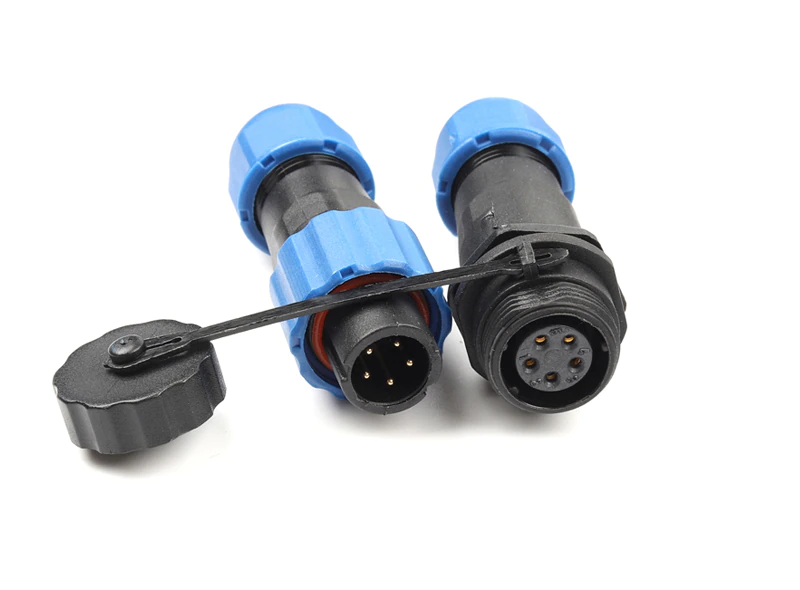

5pin Waterproof Connector, IP68 Aviation Bulkhead Outdoor led Plug Socket

IP68 waterproof aviation industrial electrical power connector Specifications for 2pin 3pin: Rated Current (A): 10A Contact diameter × number: Φ1.8×2 Rated voltage (AC.V.): 250V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 2mΩ Cable specification: <2m㎡/14AWG Specifications for , 4pin, 5pin, 6pin, 7pin，9pin : Rated Current (A): 5A Contact diameter × number: Φ1.0×4 / Φ1.0×5 / Φ1.0×6 / Φ1.0×7 / Φ1.0×9 Rated voltage (AC.V.): 250V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 5mΩ Cable specification: <0.785m㎡/18AWG Coupling: Threaded Coupling Shell Materia: Nylon66, fire resistance:V0 Insert Material: PPS man temperature 260° Contact materia: Brass (gold-plated) Termination: solder Cable outer diameter range：A4-6.5mm Protection level: IP68 Durability: ≥500 times Working temperature: -25℃～85℃ Insulation resistance: 2000MΩ What’s in the package: 1 plug +1 socket
