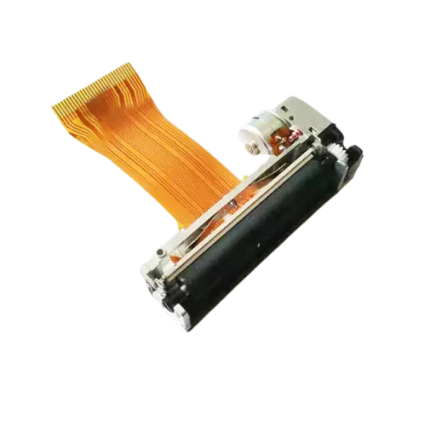

58mm thermal print head compatibility FUJITSU’s FTP-628MCL054 printing mechanism

58mm thermla print head FTP-628MCL054 printing mechanism

Dimensions compact, easy portable applications, product size: 15.3mm wide 70mmX deep 33mmX high
High-density printhead, 8 dots / mm, compared to the needle to be able to print more accurate results clearly
Depending on the driving energy and thermal sensitivity thermal paper using different user requirements can set different print speeds up to 90mm / s print speed

Max Paper Size:

58mm

Black Print Speed:

70-80mm/s

Max. Resolution:

384dots

Brand Name:

Divye

Model Number:

628mcl054

Printing Method:

Thermal dot line printing

Application:

receipt printer

Printing Width:

48mm

Item name:

58mm Thermal Printer head

Printing speed(Max):

70-80mm/s(Motor voltage at DC8.5V)

Dot pitch:

0.125mm

Dot size:

0.125mm*0.12mm

Paper thickness:

60-100um

Printing life:

more than 50km

Resolution of paper traveling:

0.0625mm per step

Type:

thermal printer head

Style:

Black and white

Use:

bill Printer
