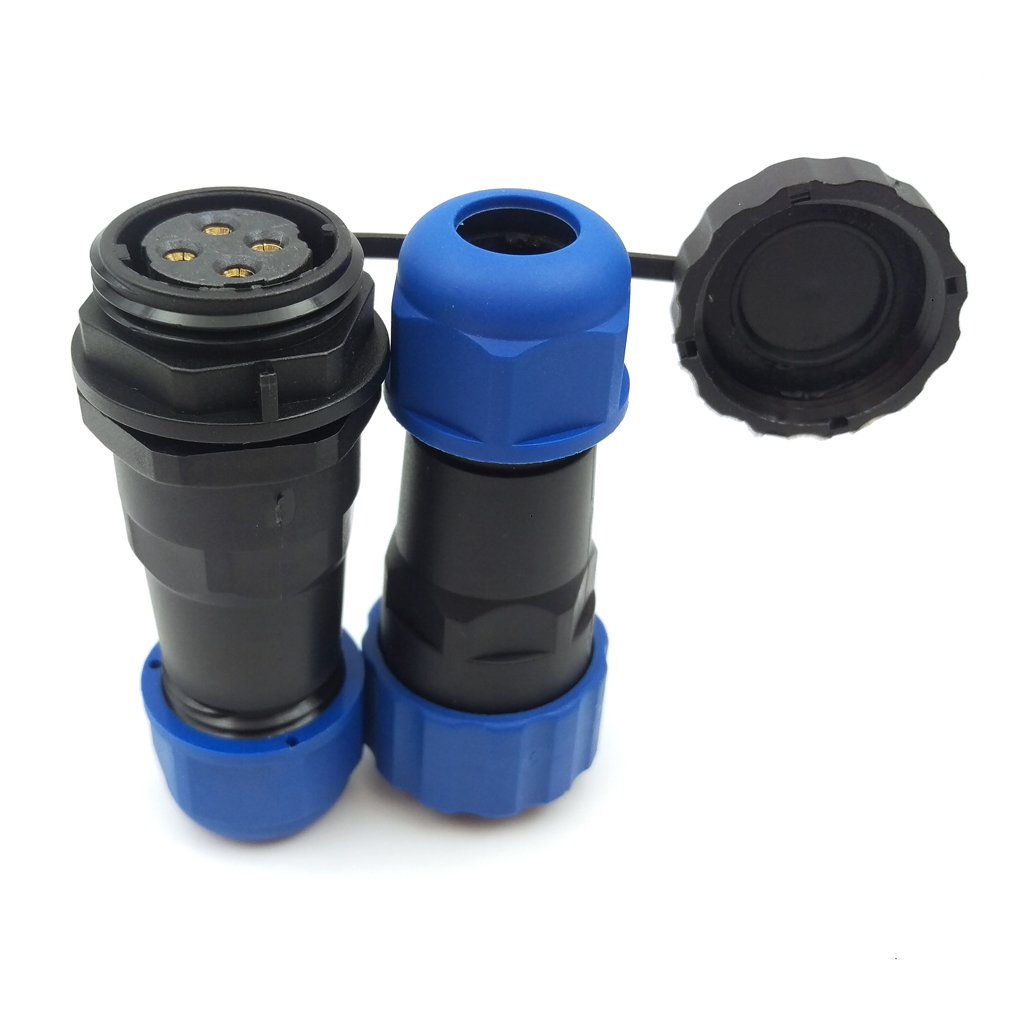

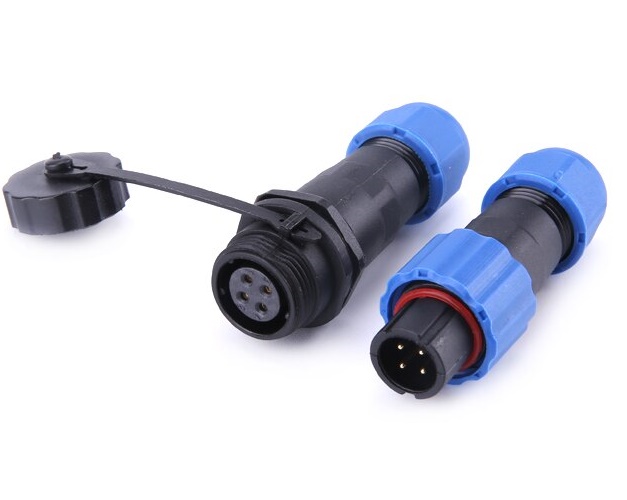

4pin Waterproof Connector, Nylon Assembly, 4 pin Plug and Socket, auto Electrical

Specifications Material: flame retardant nylon Welded pinhole: beryllium bronze Seal: EPDM rubber ROHS environmental protection materials Gender: male female Combination design style: welding Shell shape: round High pressure: ≥ 1000V / 1Minute (under normal 2.5KV water pouring 1.0KV) Sealed protection: 1meter water depth for two weeks Strong anti-corrosion, anti-light hydration and other functions For machinery and equipment, outdoor LED display. Specific features are as follows: 1. Operating temperature: -45 ° C ~ 105 ° C 2. Relative humidity: 90% ~ 95% (40 ± 2 ° C) 3. Salt spray: 5% NaC1 mist in 48h 4. Sealing: IP68 (2m depth 2h not deep water) 5. Working Current: 25A (2-5pin), 15A(7pin), 5A(9-12pin) 6. Working Voltage and Withstanding Voltage (Sea Level) Working Voltage: 250V (AC) Withstand Voltage: 2500V (AC) 7. Insulation resistance: 2000MΩ under normal condition 8. Contact Resistance: 1MΩ(2-5pin), 2MΩ(7pin),5MΩ(9-12pin) 9. Apply wire: <2.5MM/ AWG12-16—2-5pin,<1.5MM/ AWG14-18—7pin,<0.9MM/ AWG14-20—9-12pin 10. Apply cable diameter: Φ6.0 ~ 12.0mm 11. Mechanical life: 500 times 12. Whole size: 5.12*1.12inch / 130*28.5mm (L*φ)
